Pallet Fork Hydraulic | N350-355

Robust and strong hydraulic Pallet Forks for wheel loaders and telescopic handlers. Max load capacity 4 to 18 tons.


View all attachments
Telescopic handler Wheel loader Machine weight >18-29 tons Machine weight >6-18 tons Lifting implements

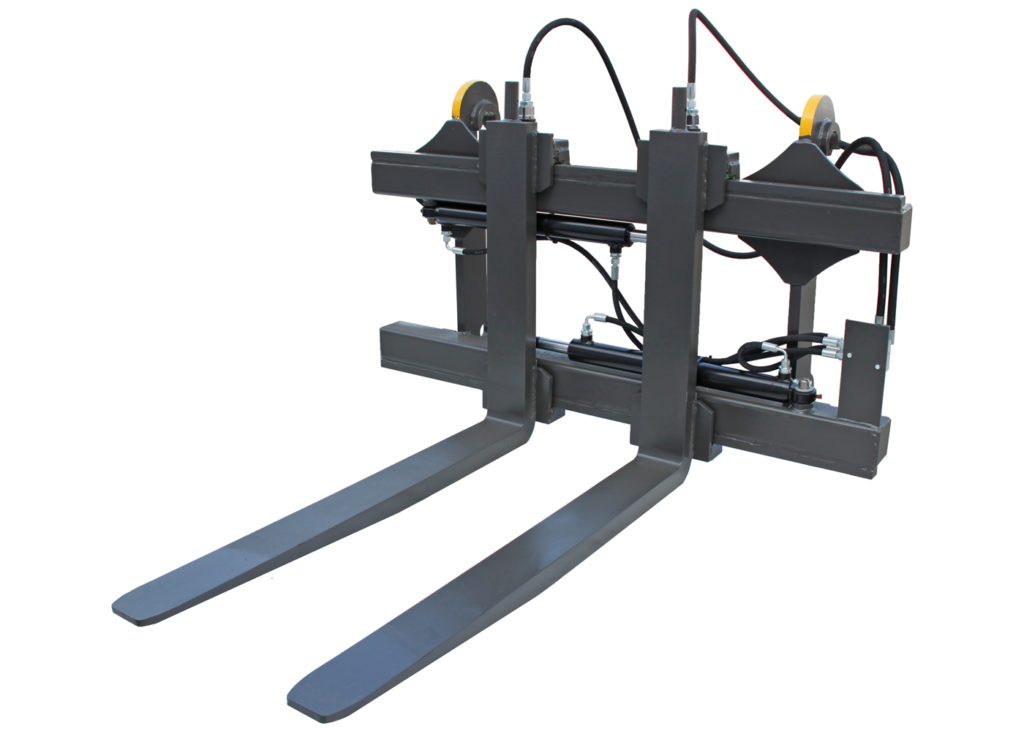

Robust and strong hydraulic pallet forks

A high quality Pallet Fork Frame equipped with hydraulic fork positioning as standard. The Pallet Fork can also be equipped with hydraulic or electrical side shift (not available for model 18 tons). The frame is robust and strong for tough handling. The 9 ton frame is also available with built in cylinders for better protection and frames 4 and 18 tons are designed with protected cylinders. Combine frame with fork arms for complete implement.

Model name Capacity/LC600 Frame width Weight Fork arms Information
N350 4000 kg 1500 mm 290 kg 100×50 Protected cylinders
N351 5290 kg 1500 mm 175 kg* 125×50 Standard (external cyl.)
N351 5290 kg 2000 mm 210 kg* 125×50 Standard (external cyl.)
N351 5290 kg 2500 mm 250 kg* 125×50 Standard (external cyl.)
N352 9140 kg 1500 mm 215 kg* 150×60 Standard (external cyl.)
N352 9140 kg 2000 mm 300 kg* 150×60 Standard (external cyl.)
N352 9140 kg 2500 mm 350 kg* 150×60 Standard (external cyl.)
N355 9140 kg 1500 mm 215 kg* 150×60 Built-in cylinders
N355 9140 kg 2000 mm 300 kg* 150×60 Built-in cylinders
N355 9140 kg 2500 mm 350 kg* 150×60 Built-in cylinders
N353¹ 18000 kg 2000 mm 580 kg* 180×70, 180×80 Protected cylinders
N353¹ 18000 kg 2500 mm 670 kg* 180×70, 180×80 Protected cylinders

*Weight excl. fork arms.

  As standard delivered with Volvo BM couplings (L70), except for model¹N353 which is delivered with Volvo BM150-180 couplings. Other original couplings can in some cases be mounted directly on the product, for example Manitou, Merlo, JCB, Atlas, Terex. For more information contact Norje.

Cranked Fork Arms

Some of Norje pallet fork frames can be supplied with cranked fork arms (Cap. 5 and 9 tons). The fork arms are cranked 50 mm per fork, which creates a better view of the fork tip between the fork arm shanks. This increases the visibility for the driver and improves control of the fork arms when handling goods.

Built-in and protected cylinders

– Hydraulställ med kapacitet 9 ton kan även levereras med inbyggda cylindrar vilket ger bättre sikt och ett extra skydd mot driftstopp. Ramen kan kompletteras med 5 tons eller 9 tons gafflar.
– Hydraulställ med kapacitet 4 ton och 18 ton levereras med skyddade cylindrar för att minska risken för skador på cylindrar och därmed driftstopp.

Pallet Fork Frame (N355) comes with built-in cylinders, a protection for the cylinders as well as a better view for the driver. The frame can be adapted with either 5 ton or 9 ton fork arms.
Frames with capacity 4 tons (N350) and 18 tons (N353) are designed with protected cylinders to prevent damage.

Options

  • Hydraulic side shift, not model N353
  • Electrical side shift (12V or 24V), not model N353
  • Support rollers (lower beam)
  • Cranked fork arms

Accessories

Fork Arms

Premium fork arms for tough handling. Capacity from 2000kg to 17500kg, adapted for Norje hydraulic and mechanical pallet fork frames.

Extension Forks

Extension Forks with capacity from 1500kg up to 25000kg, manufactured out of extra high grade steel which allows for a lower weight and slimmer models.

We have your couplings

Norje can offer a wide assortment of original couplings mounted directly on implements. From smaller compact machines to large wheel loaders. Below you find a list of couplings we can offer. To be able to fulfill warranties Norje recommends and decides which couplings are suitable for which implements. For more information, please contact us.

  • Ahlmann 85
  • AR 35 (Atlas)
  • AR 65 (Atlas)
  • AR 95 (Atlas)
  • Avant
  • Bobcat 453
  • Bobcat 463
  • Bobcat 553+
  • Bobcat wheel loader
  • Bobcat Telescopic
  • Case 121
  • Case 350
  • Cat 924
  • Cat 906
  • Claas Ranger
  • Claas Scorpio
  • Dieci (small)
  • Dieci (big)
  • Dieci Agrimax
  • Dieci Pegasus
  • Euro
  • Faresin Telescopic
  • Ferrari
  • Genie (Terex Telescopic)
  • Giant
  • Hoftrac
  • Hydrema 800
  • Isme
  • JCB Telescopic
  • JCB Toolcarrier
  • JD compact
  • JD Telescopic (Matbro)
  • JLG
  • Kramer 550/560
  • Kramer 180
  • Kramer 280
  • Kramer 380
  • Kjällve
  • Magni Telescopic
  • Manitou Telescopic
  • Merlo
  • New Holland Telescopic
  • Norcar (Agromatic)
  • Schaeff (50 mm)
  • Schäffer
  • Schäffer miniloader 2014
  • Schäffer mini HD
  • Schäffer Telescopic
  • Sennebogen
  • SMS (Trima)
  • Terex TL65 (35 mm)
  • Terex TL80 (50 mm)
  • Tranås 1250
  • Three point hitch Kat. 2
  • Triangel
  • Vila
  • Volvo BM 641 (older model)
  • Volvo BM L70 (ex. L35-L120)
  • Volvo BM L70/3-point hitch
  • Volvo L150-180
  • Weidemann
  • Big Weidemann
  • Zettelmeyer 302
  • Zettelmeyer 402 (Volvo L20-25)
  • Zettelmeyer 602 (Volvo L30, JCB, Komatsu, Cat)
  • Zettelmeyer 802
  • Zettelmeyer L35-45 TPZ
  • Ålö type 3

Can’t find your coupling? We can fit to most machines, please contact us.
